Patch uploading and downloading

25pages on
this wiki
Add New Page
Talk3 Share

midi ox setting in use to up and download patches

Download midiOx here: http://www.midiox.com/

Here is how I have my midi ox set that works with my set up...

1] Start Midi Ox

2] Choose the appropriate Midi In/Out from your list

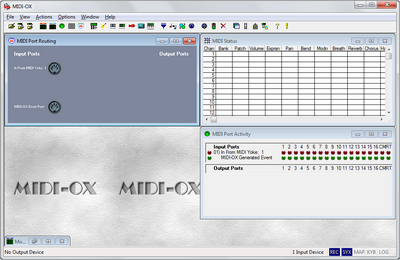

MidiOx 1

MidiOx Root menu

3] It goes without saying ... midi out FROM the computer goes to midi IN on the synth.

Similarly, midi in TO the computer goes to midi OUT on the synth

4] Choose View -> SysEx

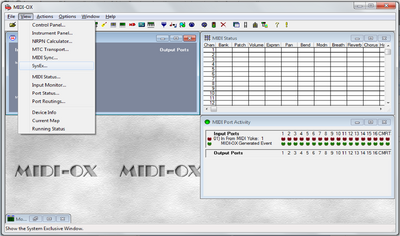

MidiOx 2

Choose SysEx from view menu

Inside midi ox

under options main menu Config buffers
low level input buffers
size 256
num 16
low level output buffers
size 512
num 16
midi filter none selected
pass sysex checked
under view sysex
sysex menu
config
low level input buffers
size 256
num 16

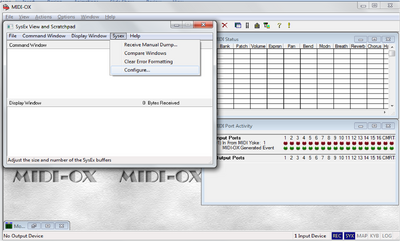

MidiOx 3

Choose Configure from SysEx menu

low level output buffers

size 512
num 16
delay 60
delay after F7 60 milliseconds and checked
fill display window as bytes come in checked

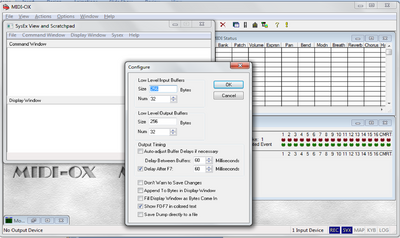

MidiOx 4

Select delays between buffers or auto configure

show F0-F7 in colored text



IF THIS DOES NOT WORK:

With an E-mu Xmidi connector and Windows 7 (64 bit), it was necessary to change low level output buffer size to 128.
